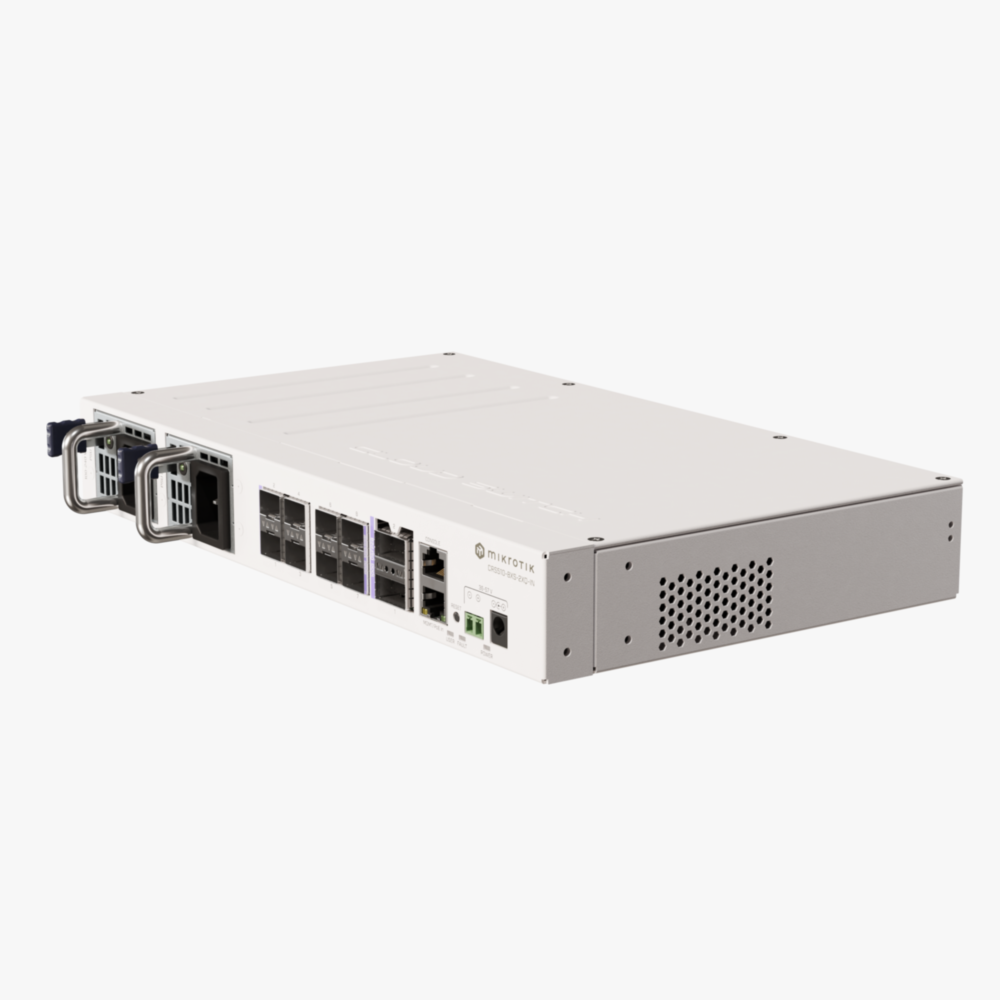

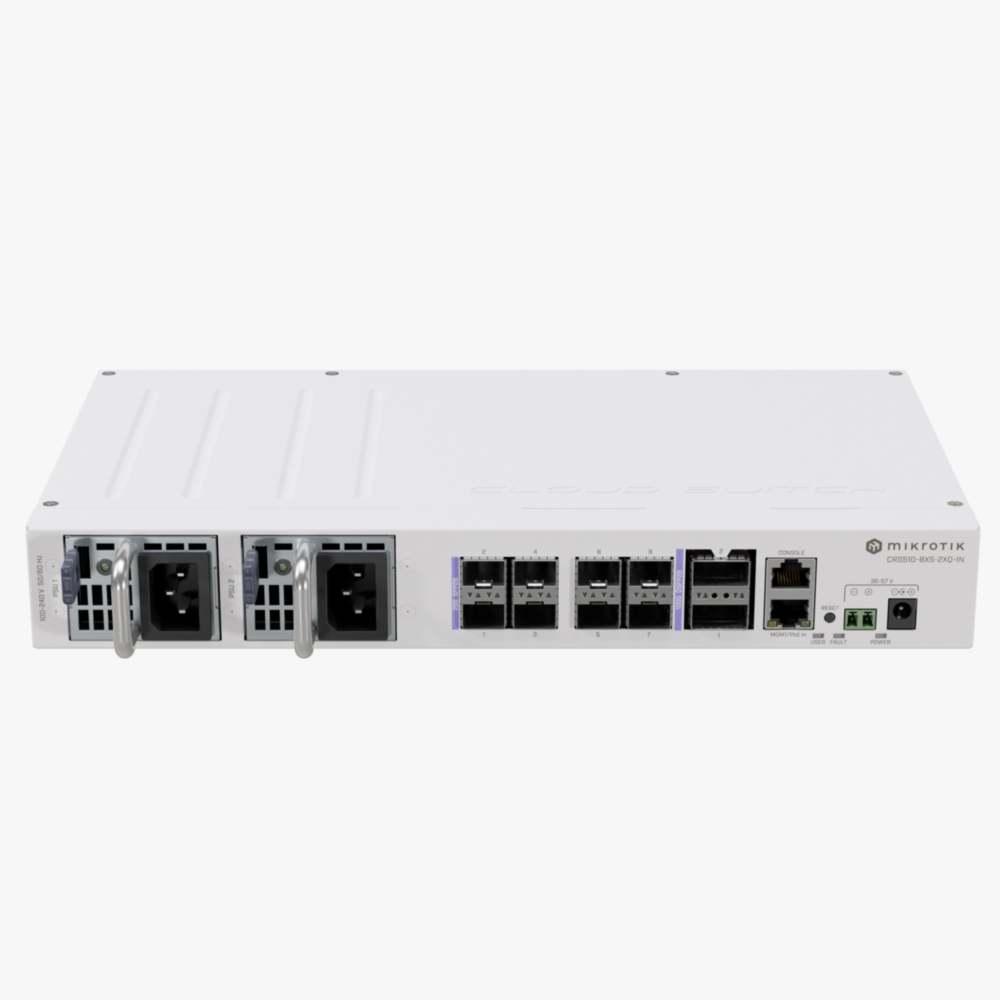

A versatile 100 Gigabit switch that offers speed, value, and diverse connectivity options. 2x 100 Gigabit QSFP28 ports, 8x 25 Gigabit SFP28 ports, dual hot-swap power supplies.

This handy switch has two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports. This combination of ports guarantees a perfect fit in almost any setup or server room. Various direct attach cables, active optical cables, copper RJ45’s… CRS510 will keep everything connected! You’ll save time, money, and precious nerve cells with the backward compatibility. This unit supports all sorts of devices – 40 Gigabit, 25 Gigabit, 10 Gigabit, and even older Gigabit connections. And – speaking of nerve cells – we’ve kept the sysadmin’s emergency tool: the good old console port.

Another reason why we love the new CRS510 (and you will too!) is the performance. It can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 27W (without attachments).

And when it comes to powering – CRS510 is a real joy to work with. It has dual hot-swap power supplies and three other powering options: PoE-in, DC jack, and a 2-pin terminal. No more unnecessary downtimes!

Specifications

Details

Product code: CRS510-8XS-2XQ-IN

Architecture: MIPSBE

CPU: QCA9531

CPU core count: 1

CPU nominal frequency: 650 MHz

Switch chip model: 98DX4310

RouterOS license: 5

Operating System: RouterOS v7

Size of RAM: 128 MB

Storage size: 32 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -40°C to 70°C

Powering

Details

Number of AC inputs: 2

AC input range: 100-240

Number of DC inputs: 3 (2-pin terminal, DC jack, PoE-IN)

DC jack input Voltage: 36-57 V

2-pin terminal input Voltage: 36-57 V

Frequency (Hz): 47-63

Max power consumption: 45 W

Max power consumption without attachments: 27 W

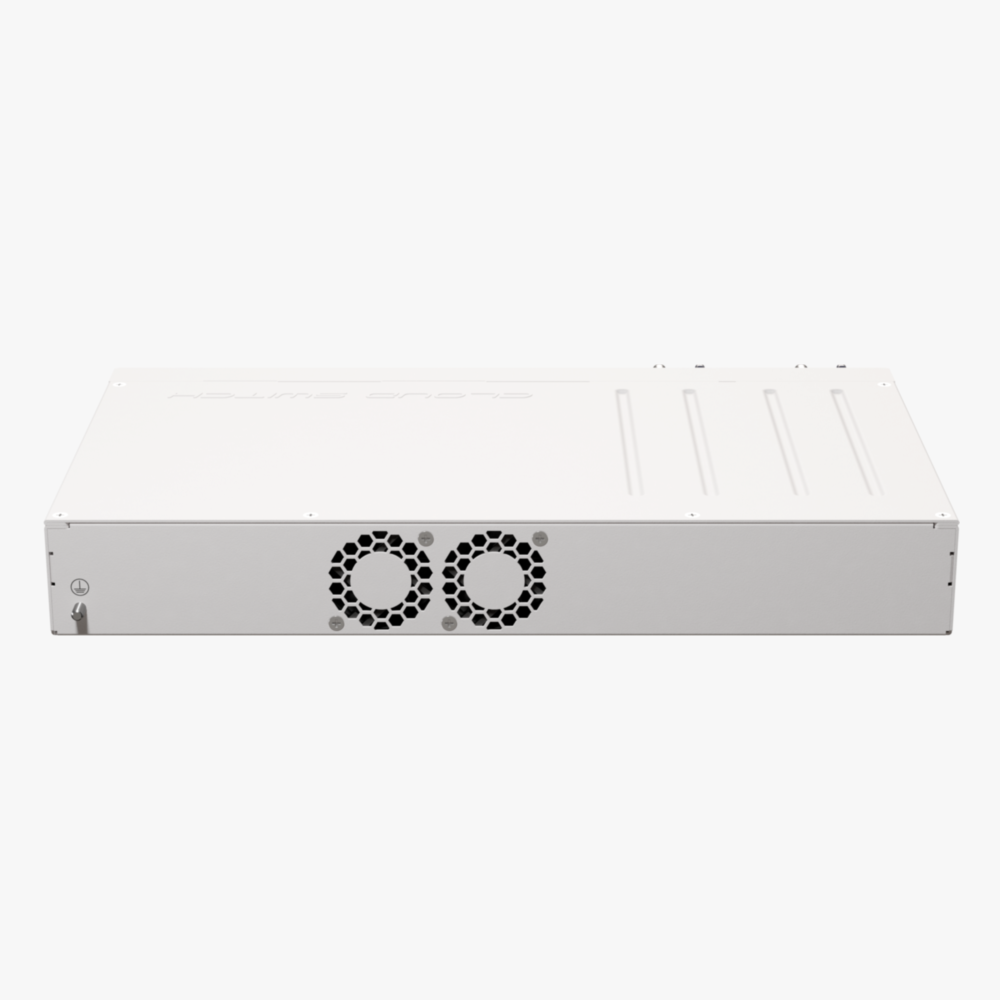

Cooling type: 2 fans

PoE in: 802.3 bt

PoE in input Voltage: 42.5-57 V

Ethernet

Details

10/100 Ethernet ports: 1

Fiber

Details

Number of 25G SFP28 ports: 8

Number of 100G QSFP28 ports: 2

Peripherals

Details

Serial console port: RJ45

Other

Details

PCB temperature monitor: Yes

Voltage Monitor Yes

Certification & Approvals

Details

Certification: CE, EAC, ROHS

IP: 20
