Tiny size 2.4GHz Dual Chain access point with a 650MHz CPU, 64MB RAM and one Ethernet port

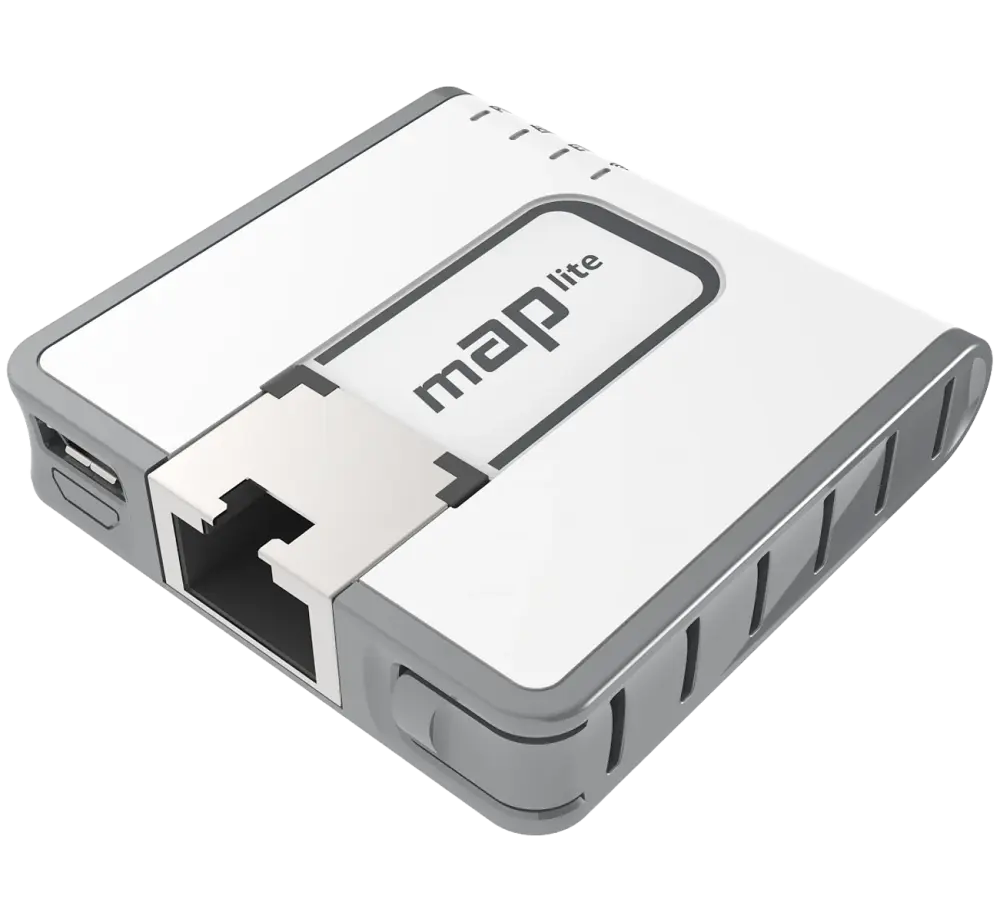

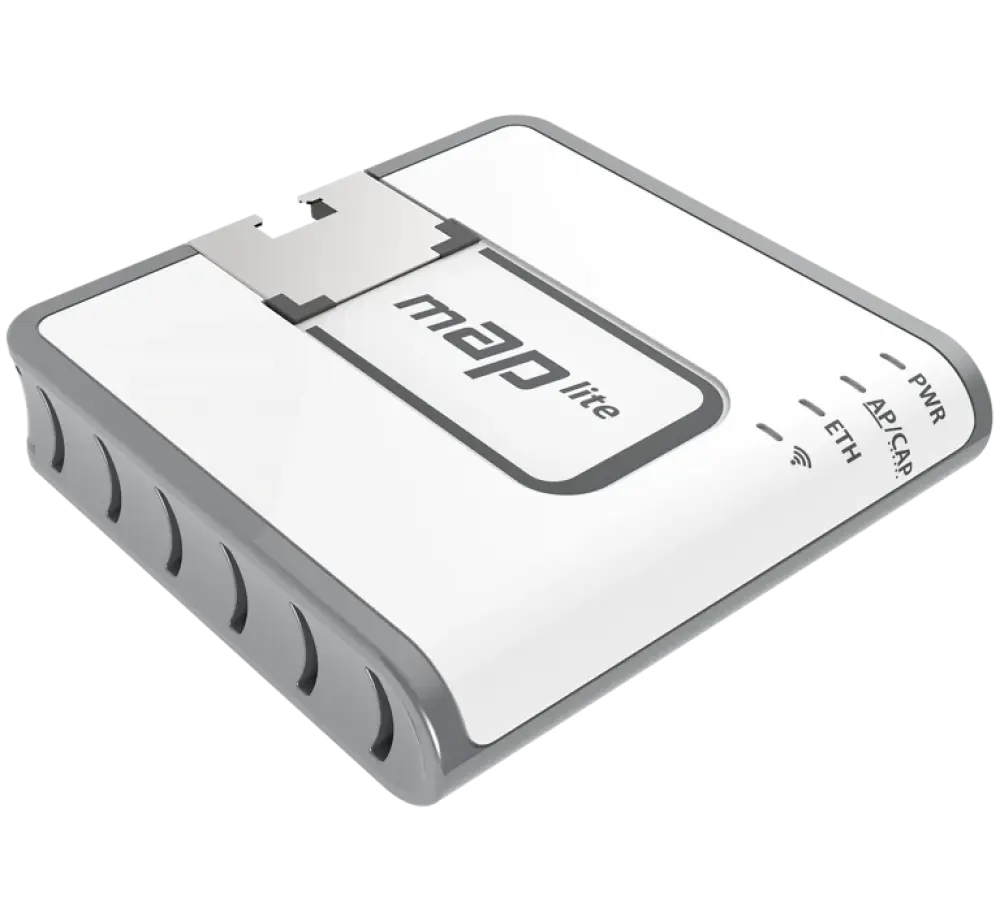

The MikroTik mAP lite, with the part number RBmAPL-2nD, is an ultra-compact and portable wireless access point designed for both personal and professional use. Built on the MIPSBE architecture, it features a QCA9533 CPU that operates at a nominal frequency of 650 MHz. This device is well-suited for small scale applications where space and power efficiency are critical. The mAP lite is MikroTik brabd smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile. The mAP lite is a dual chain 802.11 b/g/n device and operates in 2 GHz.
Wireless Network
WiFi 4Standards
802.11nFrequency
2.4GHz2.4GHz Radio Rate
300 Mbps
Antenna
Wireless Antenna Frequency Range & Gain
2.412 - 2.484 (GHz) 1.5 (dBi)Beamwidth
360 °Polarization
Dual Linear
Interfaces
RJ45 Ports
Management
Ethernet, Wi-Fi
System Specification
Chipset
QCA9533, 1 core, 650 MHzRAM
64 MBStorage Memory
16 MB
Power Method
AC/DC Adapter, 24V Passive PoE, 48V Passive PoE, 802.3af PoE, 802.3at PoE+Power Supply
External AC/DC AdapterSupported Input Voltage
10 - 60 V DCMax Power Consumption
3.5 WPower Connector
MicroUSB
Physical Parameters
Dimensions
49 x 48 x 11 mmOperating Temperature
-30 °C to 70 °CEnvironment
Indoor
