Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.

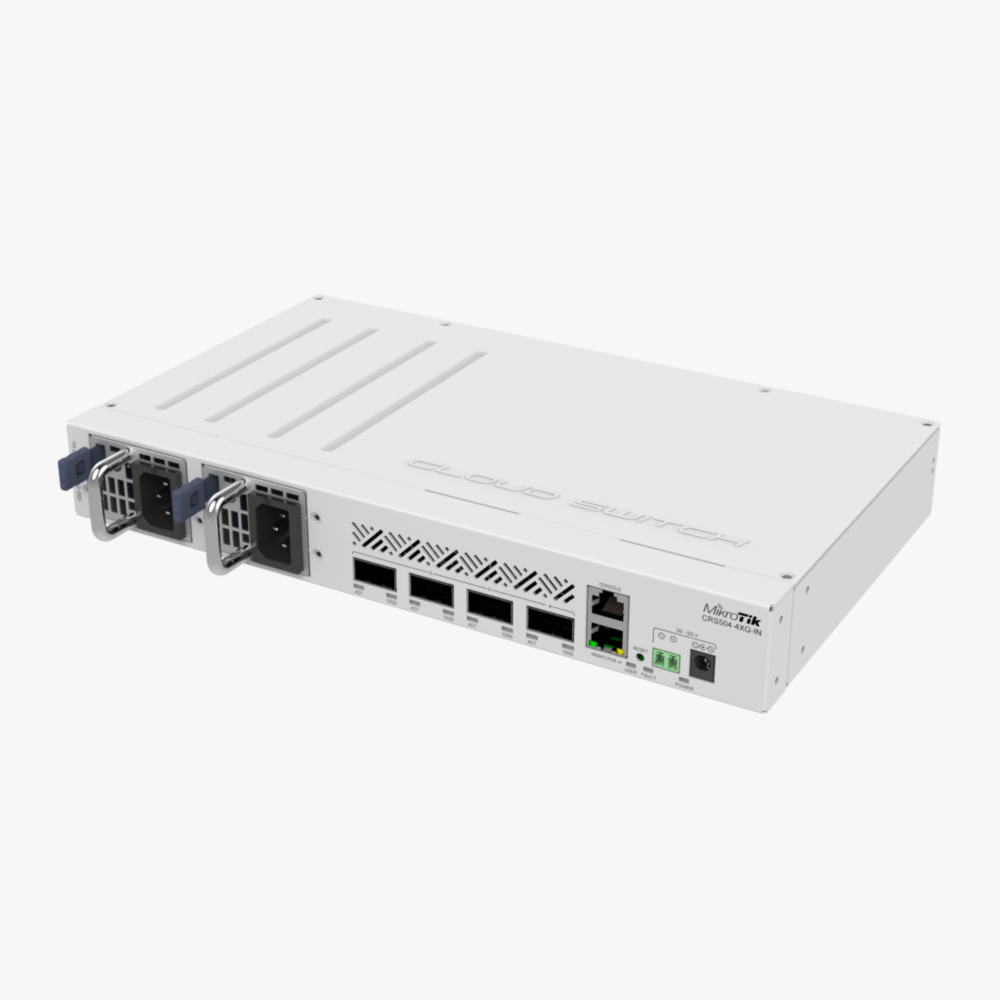

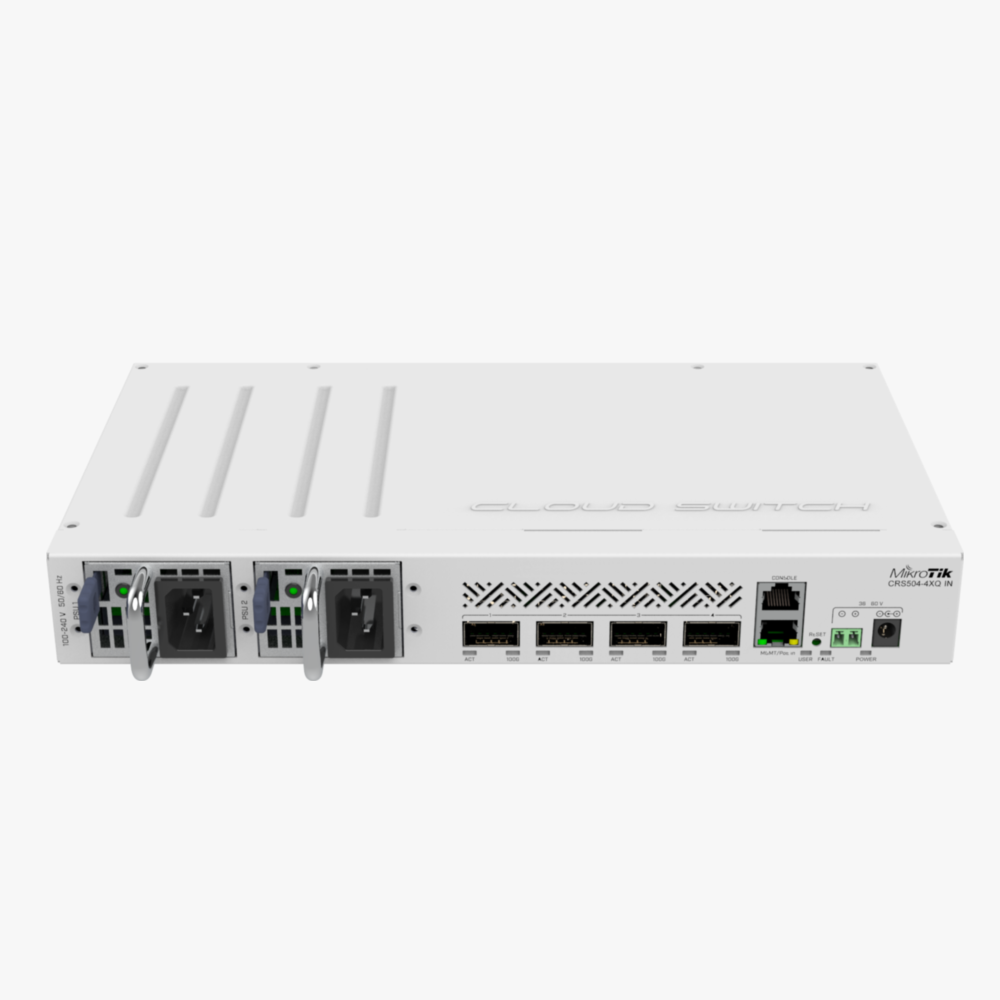

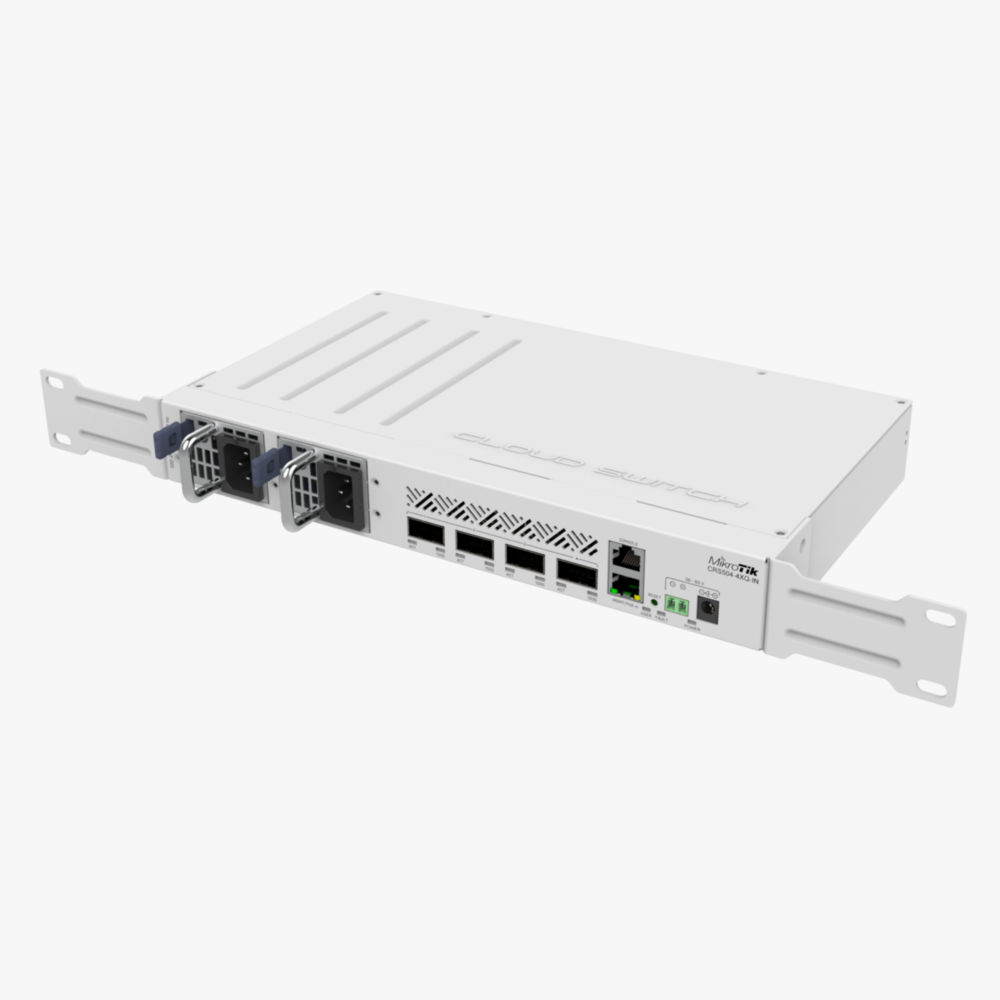

Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!

Four 100 Gigabit QSFP28 ports, The mighty Marvell DX4310 switch-chip will handle everything.

Specifications

Details

Product code: CRS504-4XQ-IN

Architecture: MIPSBE

CPU: QCA9531

CPU core count: 1

CPU nominal frequency: 650 MHz

Switch chip model: 98DX4310

Dimensions: 320 x 185 x 44 mm

RouterOS license: 5

Operating System: RouterOS v7

Size of RAM: 64 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -40°C to 70°C

Powering

Details

Number of AC inputs: 2

AC input range: 100-240

Number of DC inputs: 3 (2-pin terminal, DC jack, PoE-IN)

DC jack input Voltage: 36-57 V

2-pin terminal input Voltage: 36-57 V

Frequency (Hz): 47-63

Max power consumption: 41 W

Max power consumption without attachments: 25 W

Cooling type: 2 fans

PoE in: 802.3 bt

PoE in input Voltage: 43-57 V

Ethernet

Details

10/100 Ethernet ports: 1

Fiber

Details

Number of 100G QSFP28 ports: 4

Peripherals

Details

Serial console port: RJ45

Other

Details

PCB temperature monitor: Yes

Voltage Monitor: Yes

Certification & Approvals

Details

Certification: CE, EAC, ROHS

IP: 20
